x402 Payments

Gate HTTP routes behind crypto payments using the x402 protocol.

Open the interactive version or read this guide as markdown.

API reference

x402 builds on the HTTP 402 status code to let AI agents and automated clients pay for API resources programmatically. It pairs a 402 Payment Required response with gasless stablecoin payments, so a machine can pay $0.002 for an API call autonomously and settle it in the same request.

CoinCircuit is the x402 facilitator. Your server states what a request costs, the agent signs a gasless payment, and CoinCircuit verifies it, covers gas, settles on-chain, and returns the transaction hash. The flow is stateless.

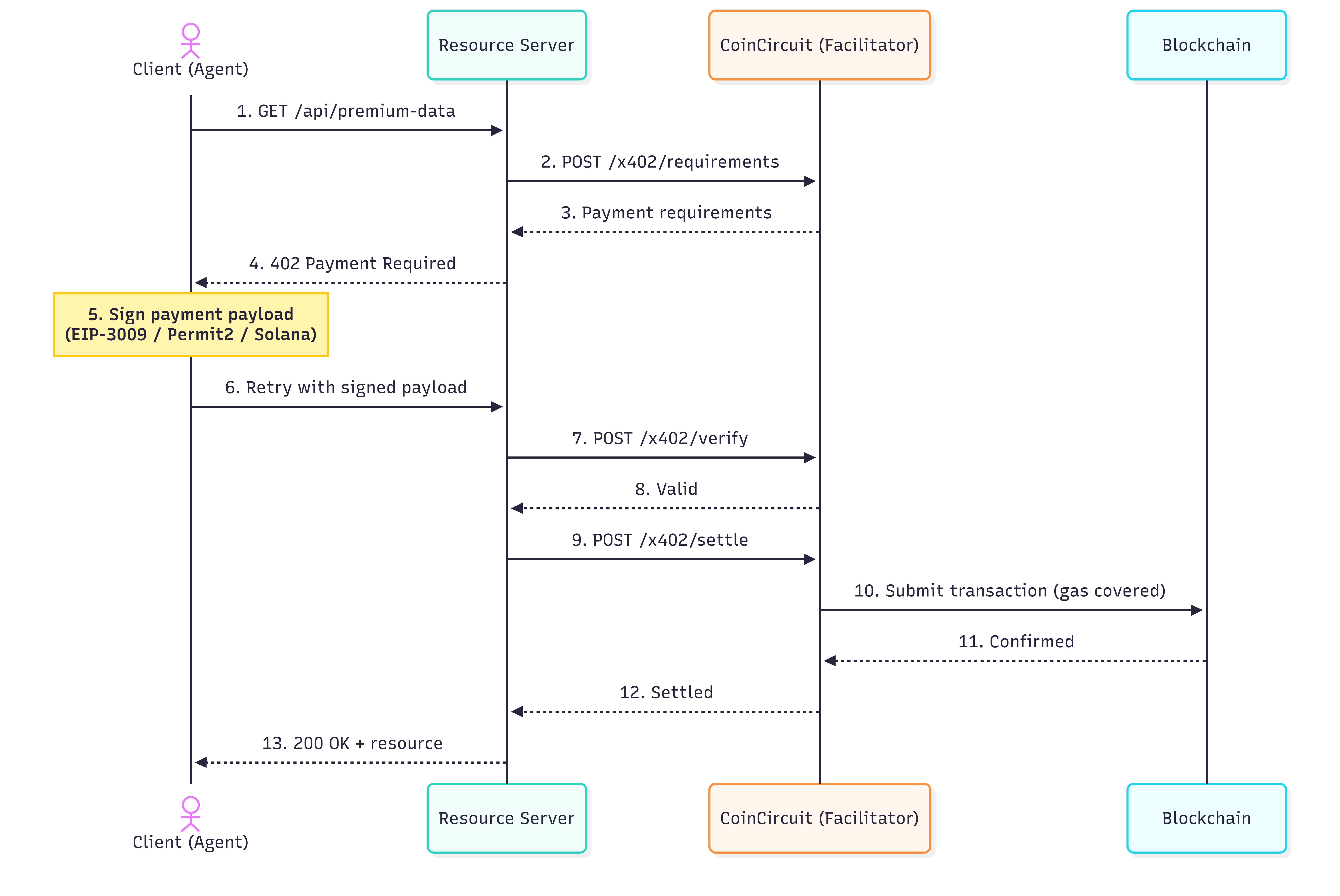

x402 payment flow: an agent, your API, the CoinCircuit facilitator, and the blockchain

Key concepts

Resource server: Your API. It returns the 402 with payment requirements, receives the signed payment, and calls CoinCircuit to settle before releasing the resource.

Facilitator: CoinCircuit. It verifies and settles the signed payment and sponsors gas. Your server authenticates to it with your API key.

Payment requirements: The terms in the 402 (scheme, network, amount, destination, token). CoinCircuit builds them for you from a chain, asset, and amount.

Gasless payment: The agent signs an authorization to move funds from its wallet to your address. CoinCircuit submits it on-chain and pays the network fee. The agent needs only a wallet and a signing key.

Destination: Funds land at the payTo you choose. Leave it unset and CoinCircuit uses your deposit address, so the payment credits your balance automatically.

How the x402 flow works

  1. The agent requests a protected resource from your API.
  2. Your server builds requirements with POST /api/v1/x402/requirements and returns them in a 402 Payment Required.
  3. The agent reads the requirements and signs a gasless payment for the scheme its chain uses.
  4. The agent retries the request with the signed payment.
  5. Your server settles it with POST /api/v1/x402/settle.
  6. CoinCircuit verifies the payment, covers gas, settles on-chain, and returns the transaction hash.
  7. Your server releases the resource.

Step-by-step integration

1. Agent requests your resource

GET /api/premium-data

2. Build the payment requirements

POST https://api.coincircuit.io/api/v1/x402/requirements
x-api-key: sk_live_your_key
Content-Type: application/json

{
  "chain": "base",
  "asset": "USDC",
  "amount": "0.10",
  "resource": "https://your-api.com/api/premium-data"
}

The response is the ready-to-return 402 body. It carries a friendly summary plus the canonical accepts array a standard x402 client reads.

{
  "x402Version": 1,
  "chain": "base",
  "asset": "USDC",
  "amount": "0.10",
  "accepts": [
    {
      "scheme": "exact",
      "network": "eip155:8453",
      "maxAmountRequired": "100000",
      "resource": "https://your-api.com/api/premium-data",
      "payTo": "0x9f1c4a2b7De3a01F5b8c2D4e6A7b9C0d1E2f3A4b",
      "maxTimeoutSeconds": 60,
      "asset": "0x833589fCD6eDb6E08f4c7C32D4f71b54bdA02913",
      "extra": { "name": "USD Coin", "version": "2" }
    }
  ]
}

3. Return the 402 challenge

Return the body with a 402 status. A standard x402 client reads accepts[0] and signs against it.

HTTP/1.1 402 Payment Required

{
  "x402Version": 1,
  "accepts": [
    {
      "scheme": "exact",
      "network": "eip155:8453",
      "maxAmountRequired": "100000",
      "resource": "https://your-api.com/api/premium-data",
      "payTo": "0x9f1c4a2b7De3a01F5b8c2D4e6A7b9C0d1E2f3A4b",
      "maxTimeoutSeconds": 60,
      "asset": "0x833589fCD6eDb6E08f4c7C32D4f71b54bdA02913",
      "extra": { "name": "USD Coin", "version": "2" }
    }
  ]
}

4. Receive the signed payment

The agent signs a payment for the scheme its chain uses and sends back the canonical paymentPayload.

{
  "x402Version": 1,
  "scheme": "exact",
  "network": "eip155:8453",
  "payload": {
    "signature": "0xb91c5d2e8a4f0c7d3e6b9a1f2c4d5e6a7b8c9d0e1f2a3b4c5d6e7f8091a2b3c4d5e6f7a8b9c0d1e2f3a4b5c6d7e8f90a1b2c3d4e5f6a7b8c9d0e1f2a3b4c1b",
    "authorization": {
      "from": "0x1A2b3C4d5E6f7A8b9C0d1E2f3A4b5C6d7E8f9A0b",
      "to": "0x9f1c4a2b7De3a01F5b8c2D4e6A7b9C0d1E2f3A4b",
      "value": "100000",
      "validAfter": "0",
      "validBefore": "1774055094",
      "nonce": "0x9b2c4d6e8f0a1b3c5d7e9f0a2b4c6d8e0f1a3b5c7d9e0f2a4b6c8d0e1f3a5b7c"
    }
  }
}

5. Settle through CoinCircuit

Forward the signed payload and the requirements you issued.

POST https://api.coincircuit.io/api/v1/x402/settle
x-api-key: sk_live_your_key
Content-Type: application/json

{
  "x402Version": 1,
  "paymentPayload": {
    "x402Version": 1,
    "scheme": "exact",
    "network": "eip155:8453",
    "payload": {
      "signature": "0xb91c5d2e8a4f0c7d3e6b9a1f2c4d5e6a7b8c9d0e1f2a3b4c5d6e7f8091a2b3c4d5e6f7a8b9c0d1e2f3a4b5c6d7e8f90a1b2c3d4e5f6a7b8c9d0e1f2a3b4c1b",
      "authorization": {
        "from": "0x1A2b3C4d5E6f7A8b9C0d1E2f3A4b5C6d7E8f9A0b",
        "to": "0x9f1c4a2b7De3a01F5b8c2D4e6A7b9C0d1E2f3A4b",
        "value": "100000",
        "validAfter": "0",
        "validBefore": "1774055094",
        "nonce": "0x9b2c4d6e8f0a1b3c5d7e9f0a2b4c6d8e0f1a3b5c7d9e0f2a4b6c8d0e1f3a5b7c"
      }
    }
  },
  "paymentRequirements": {
    "scheme": "exact",
    "network": "eip155:8453",
    "maxAmountRequired": "100000",
    "resource": "https://your-api.com/api/premium-data",
    "payTo": "0x9f1c4a2b7De3a01F5b8c2D4e6A7b9C0d1E2f3A4b",
    "maxTimeoutSeconds": 60,
    "asset": "0x833589fCD6eDb6E08f4c7C32D4f71b54bdA02913",
    "extra": { "name": "USD Coin", "version": "2" }
  }
}

A successful response returns the settled transaction.

{
  "success": true,
  "data": {
    "id": "a1b2c3d4-e5f6-4789-a0b1-c2d3e4f5a6b7",
    "txHash": "0x4b7a1f0c9d2e5a6f8b0c1d2e3f4a5b6c7d8e9f0a1b2c3d4e5f6a7b8c9d0e1f2a3",
    "status": "confirmed",
    "amlCheck": "passed",
    "errorReason": null,
    "network": "eip155:8453",
    "chain": "base",
    "asset": "USDC",
    "payer": "0x1A2b3C4d5E6f7A8b9C0d1E2f3A4b5C6d7E8f9A0b",
    "payTo": "0x9f1c4a2b7De3a01F5b8c2D4e6A7b9C0d1E2f3A4b",
    "amount": "0.10",
    "fee": "0",
    "blockNumber": 21048765,
    "explorerUrl": "https://basescan.org/tx/0x4b7a1f0c9d2e5a6f8b0c1d2e3f4a5b6c7d8e9f0a1b2c3d4e5f6a7b8c9d0e1f2a3",
    "createdAt": "2026-06-25T21:09:02.000Z"
  }
}

Deliver the resource once settlement succeeds, and persist the transaction hash for reconciliation.

Each signed payment settles once. If the same payment is submitted again, settle returns 409 Conflict; the chain never moves funds twice.

Resource server example

app.get("/api/premium-data", async (_req, res) => {
  const requirements = await fetch("https://api.coincircuit.io/api/v1/x402/requirements", {
    method: "POST",
    headers: {
      "x-api-key": process.env.COINCIRCUIT_API_KEY!,
      "Content-Type": "application/json",
    },
    body: JSON.stringify({
      chain: "base",
      asset: "USDC",
      amount: "0.10",
      resource: "https://your-api.com/api/premium-data",
    }),
  }).then((response) => response.json());

  return res.status(402).json(requirements.data);
});

app.post("/api/premium-data/pay", async (req, res) => {
  const { paymentPayload, paymentRequirements } = req.body;

  const result = await fetch("https://api.coincircuit.io/api/v1/x402/settle", {
    method: "POST",
    headers: {
      "x-api-key": process.env.COINCIRCUIT_API_KEY!,
      "Content-Type": "application/json",
    },
    body: JSON.stringify({ x402Version: 1, paymentPayload, paymentRequirements }),
  }).then((response) => response.json());

  return res.json({ data: "premium resource", txHash: result.data.txHash });
});

Pre-validate before settling

Use POST /api/v1/x402/verify to dry-run a signed payment without touching the blockchain. It takes the same body as settle and runs the requirement and on-chain checks: destination, amount, timestamp, nonce replay, and sender balance.

Discover supported networks

GET /api/v1/x402/supported returns the chains and assets you can accept, and the Solana fee payer to use.

Look up settled payments

Every settlement is recorded against your account. List them, or fetch one by hash. Both return the same transaction object that settle returns.

GET https://api.coincircuit.io/api/v1/x402/transactions?chain=base&status=confirmed&page=1&size=20
x-api-key: sk_live_your_key

Filter with chain, asset, status, search (transaction hash or address), startDate, and endDate. Page with page and size.

{
  "success": true,
  "data": [
    {
      "id": "a1b2c3d4-e5f6-4789-a0b1-c2d3e4f5a6b7",
      "txHash": "0x4b7a1f0c9d2e5a6f8b0c1d2e3f4a5b6c7d8e9f0a1b2c3d4e5f6a7b8c9d0e1f2a3",
      "status": "confirmed",
      "amlCheck": "passed",
      "errorReason": null,
      "network": "eip155:8453",
      "chain": "base",
      "asset": "USDC",
      "payer": "0x1A2b3C4d5E6f7A8b9C0d1E2f3A4b5C6d7E8f9A0b",
      "payTo": "0x9f1c4a2b7De3a01F5b8c2D4e6A7b9C0d1E2f3A4b",
      "amount": "0.10",
      "fee": "0",
      "blockNumber": 21048765,
      "explorerUrl": "https://basescan.org/tx/0x4b7a1f0c9d2e5a6f8b0c1d2e3f4a5b6c7d8e9f0a1b2c3d4e5f6a7b8c9d0e1f2a3",
      "createdAt": "2026-06-25T21:09:02.000Z"
    }
  ],
  "meta": { "page": 1, "size": 20, "total": 1, "totalPages": 1 }
}

Fetch a single payment by its transaction hash:

GET https://api.coincircuit.io/api/v1/x402/transactions/0x4b7a1f0c9d2e5a6f8b0c1d2e3f4a5b6c7d8e9f0a1b2c3d4e5f6a7b8c9d0e1f2a3
x-api-key: sk_live_your_key

Signing schemes

The wire scheme is always exact. CoinCircuit selects the on-chain mechanism from the network and asset.

Asset Networks Mechanism
USDC Base, Arbitrum, BSC, Solana EIP-3009 (EVM), partial signing (Solana)
USDT Base, Arbitrum, BSC, Solana Permit2 (EVM), partial signing (Solana)

EVM (USDC, USDT): the agent signs an EIP-712 authorization, using extra.name and extra.version from the requirements, and sends { signature, authorization }.

Solana (USDC, USDT): the agent builds an SPL token transfer, sets extra.feePayer from the requirements as the transaction fee payer, partially signs it, and sends { transaction } as base64. CoinCircuit co-signs as fee payer at settlement.

Why your server settles

The agent signs the authorization; your backend settles it through CoinCircuit. The agent stays simple: just a wallet and a signing key. Your server stays in control: validate the request, settle, then release the resource only after confirmation.
